Microcontroller
Development board

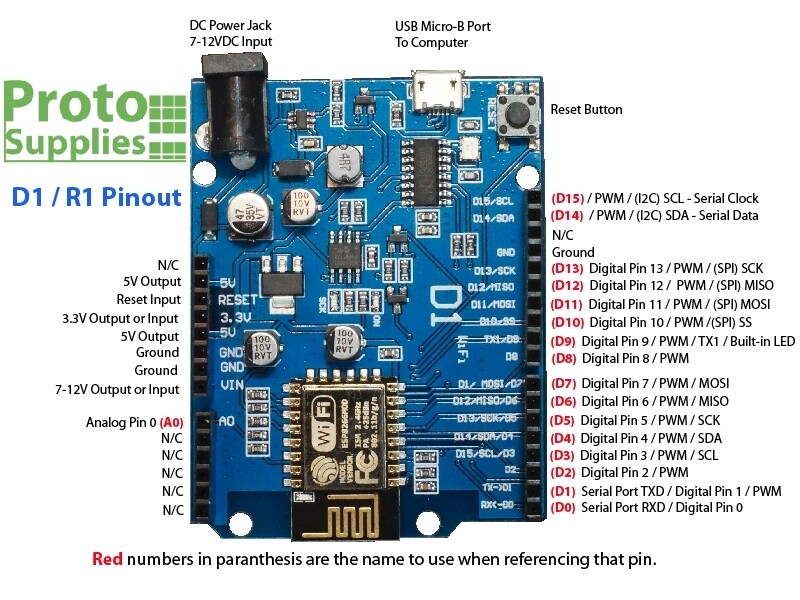

Wemos D1 development board is used for meassuring and transfering sensordata. It is equiped with a esp8266 microcontroller and wifi. The controller have 1 analog and 11 digital pins that supports I2C and SPI.
Library
DHT sensor library for ESPx@^1.19
CCS811 Library@^1.1.1
Adafruit SH110X@^2.1.10

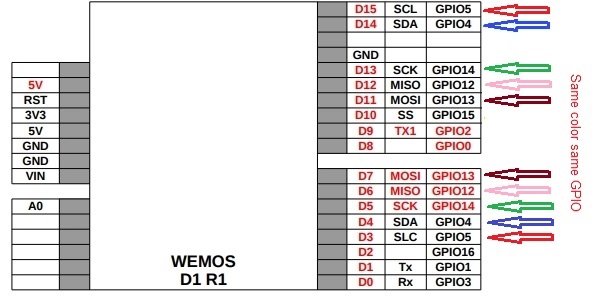

Pinout
Name |
GPIO |
Physical pin |
|---|---|---|
Analog sensor |
A0 |
A0 |
Soil 2 power |
3 |
D00 |
Oled CS |
1 |
D01 |
Oled DC |
16 |
D02 |
PH power |
0 |
D08 |
DHT11 input |
2 |
D09 |
Soil 1 power |
15 |
D10 |
Oled MOSI |
13 |
D11 |
Oled RES |
12 |
D12 |
Oled SCLK |
14 |
D13 |
Air quality SDA |
4 |
D14 |
Air quality SCK |
5 |
D15 |
